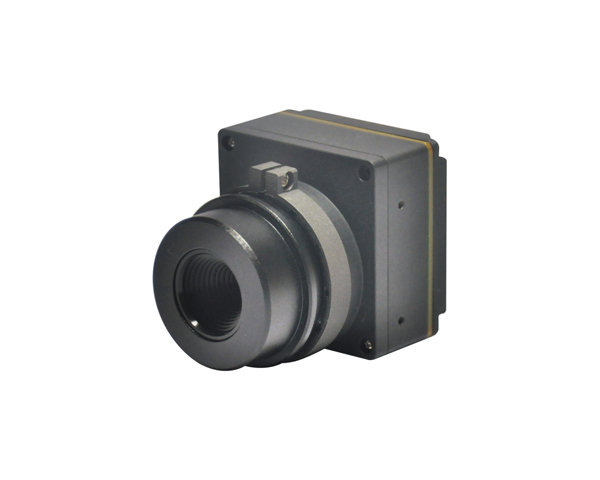

Núcleo de imagen térmica de TC688
Número de producto: TC688 640 x 480 píxeles
Categoria del producto: Núcleos de cámaras termográficas - Núcleo del obturador
TC388|TC688 are the thermal imaging camera cores with advanced reliable shutter, it can provide stable and high quality thermal images and videos. It can be easily integrated into defense, security and surveillance systems.
Principales Características◆ 50Hz imaging frequency, 3s for start-up
◆ Ultra-low power consumption(less than 1.2W)
◆ IVE technology
◆ Customizable interfaces
◆ PAL & NTSC switchable analog video output
Detector Data |
||
Material | aSi | |
IR resolution | 640×480 | |
Pixel pitch | 17μm | |
Spectral range | 7.5~14μm | |
NETD/Sensitivity | 65mK | |
Lens Data |
||
Lens(Optional) | 9mm/13mm/19mm/25mm/35mm/50mm/75mm athermal lens, 100mm/150mm motorized lens, dual FOV lens, continuous zoom lens(optional) | |
Image Performance |
||
Image enhancement | IVE image enhancement algorithm | |
Frequency | 50Hz | |
Zoom | 2x、4x | |
Polarity/LUT mode | Black hot/White hot | |
Startup time | 3s | |
Image gain | Auto/Manual | |
Focus | Motor | |
Cross cursor | ON/OFF | |
Image frozen | Yes | |
Interface |
||

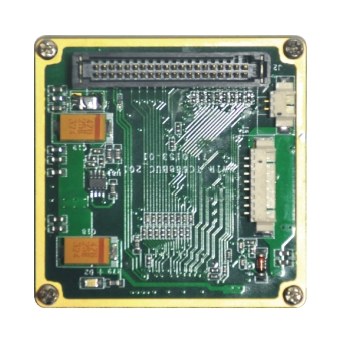

Primary Electrical Connector | 40pin | |
Control port | RS232 | |
Analog video output | BNC(75Ω); CCIR/PAL | |
Digital video output | 16-Bit original data, 8-Bit BT656(customizable) | |
Keypad | 4 button keyboard | |
Power System |
||
Working voltage | DC: +4V~+5.5V(Standard: 5V) | |
Power consumption | 1.5W | |
Reverse polarity protection | Yes | |
Over voltage protection | Yes | |
Environmental Parameters |
||
Operating temperature range | -40 ℃~+60℃ | |
Storage temperature range | -50 ℃~+70℃ | |
Humidity | 5%~95% (non-condense) | |
Shock | GJB150-16 2.3.1, 100g: 6msec | |
Vibration | GJB150-16 2.3.1, 4.3g 3axises, 8h | |
Physical Data |
||
Size | 44.5mm×44.5mm×39.5mm | |
Weight | ≤77g(without lens) | |
Mounting | M2×0.4, 1/4”-20 | |
Packing |
||

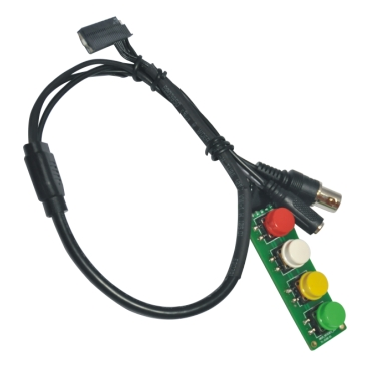

Standard | Thermal imaging core, integrated cable, user manual of CD, warranty card, calibration certificate |
|
|
|||||
|
|
