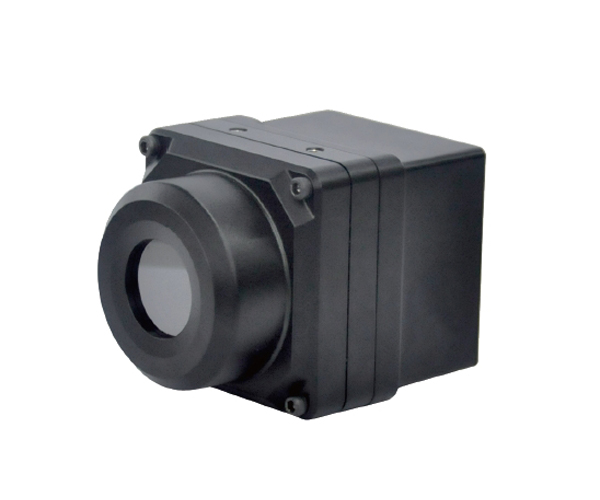

Driver’s Vision Enhancer Selina30
Número de producto: Selina30 384×288 pixels
Categoria del producto: Cámaras térmicas de visión nocturna - Sistema de visión vehículo
Selina30 is designed for enhancing the driver’s visual ability and extending recognition distance in total darkness, smoke, rain and snow. It can significantly reduce the hazards of night time driving, and can be integrated into both commercial and military vehicles.
Principales Características◆ 50Hz instant imaging
◆ Auto de-icing, defrosting functions
◆ IP67 encapsulation
◆ Clear imaging in darkness
◆ The ability to survive in harsh environment
Item |
Selina30 |
Detector Data |
|
Type | Uncooled FPA |
IR resolution | 384×288 |
Pixel pitch | 17μm |
Spectral range | 8~14μm |
NETD/Sensitivity | 60mK@300K |
Lens Data |
|
FOV/Focal distance | 36.1°×27.1°/10mm |
Detection distance(human) | 300m |
Recognition distance(human) | 78m |
Identification distance(human) | 40m |
Detection distance(vehicle) | 800m |
Recognition distance(vehicle) | 230m |
Identification distance(vehicle) | 116m |
F | F 1.0 |
Image Performance |
|
Image enhancement | IVE image enhancement algorithm |
Noise reduction | Digital filtering |
Frequency | 50Hz |
Focus mode | No focusing |
Startup time | 5s |
Contrast/brightness | Auto |
Interfaces |
|
Power interface | Yes |
Video output | PAL |
Power System |
|
Working voltage | DC: 7V~32V |
Power consumption | <1W(stable state) |
<6.5W start window heating(<4℃) | |
Over&Under voltage protection | Yes |
Surge suppression | DC: 80V, 20ms |
Environment Parameters |
|
Operating temperature range | -40℃~+60℃ |
Storage temperature range | -45℃~+65℃ |
Humidity | 40℃/95%RH(Non-condense) |
Salt spray | GJB150.11A-2009 |
Vibration | GJB150.18A-2009 |
Shock | GJB150.16A-2009 |
Encapsulation | IP67 |
Physical Data |
|
Size | 62mm×64mm×83.5mm |
Weight | <380g |
|
|
|||||
|
|
