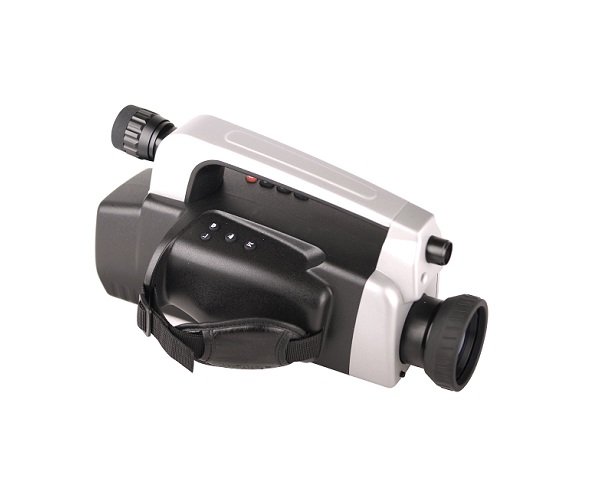

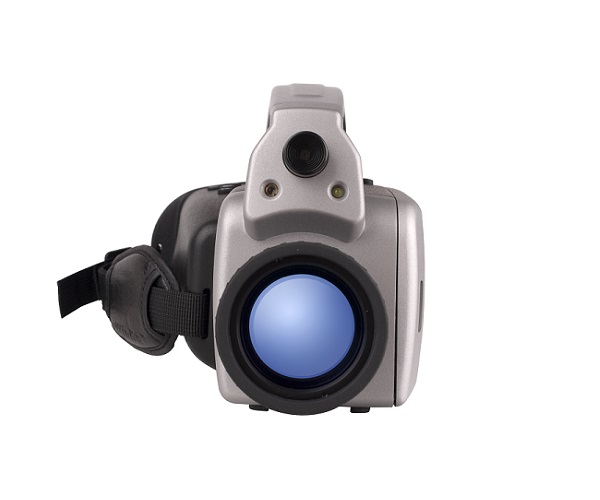

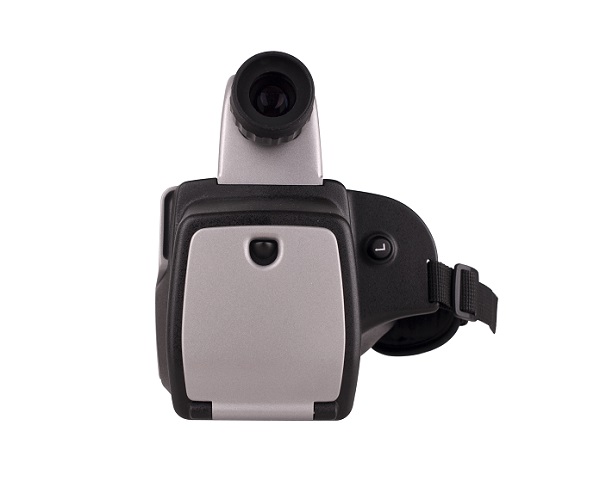

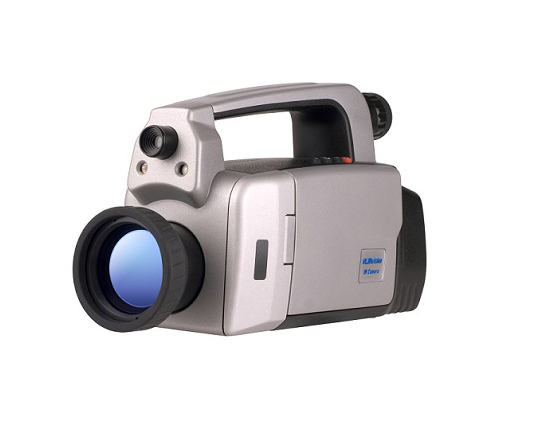

Cámara de Gas Infrarroja TI320+

Número de producto: TI320+ 320 x 256 píxeles

Categoria del producto: Aplicación de fugas de gas - Detección de fugas de gas

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

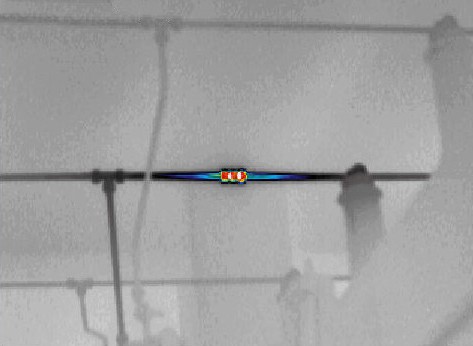

TI320+ is with cooled detector(QWIP, NETD<25mK) to detect SF6 and NH3 gas leaks and pinpoint the gas leaks location accurately, also offers temperature measurement. It is a multifunctional device for gas leakage detection and thermograph applications.

Principales Características

◆ Cooled QWIP detector, sensitivity <0.025℃, pinpoint gas leaks location quickly
◆ Dual-application: gas leakage detection and thermograph application
◆ Temperature range: -20℃~+500℃
◆ Interchangeable lenses available
◆ Built-in 5.0 MP digital camera
◆ Folding and 270°rotatable display

Detector Data

Type Cooled QWIP
IR resolution 320×256
Pixel pitch 30μm
Spectral range 9.8~11.2μm
NETD/Sensitivity 25mK
SF6 gas sensitivity ≤0.001ml/s


FOV/Focal distance 10°×7.5°/55mm
Minimum Imaging distance 2m
IFOV 0.55mrad
Minimum imaging distance Auto/Motor/Manual

Image Performance

Display 5”, color LCD, 800×480 pixels
Frequency 50Hz/60Hz
Digital zoom 1X~8X continuous
Color palletes 12 palletes(including iron, rainbow, white hot and black hot etc.)
Contrast/brightness Auto/Manual


Temperature range -20℃~+500℃
Temperature accuracy ±2℃/±2%(reading)
Spotmeter 10 adjustable spots
Line profile Vertical/Horizontal
Area 5 adjustable boxes with max./min./avg temperature value
Isotherms analysis Capture high/low temperature/interval
Alarm Voice, color
Measurement correction Auto/Manual
Emissivity correction Adjustable from 0.01 to 1.0 or selected from list of materials
Background temperature correction Auto
Atmospheric transmissivity correction Auto
Setting function Date/time, temperature unit ℃/℉/K, language
Languages 10 languages(English, French, Italian, German, Spanish, Portuguese, Russian, Korean, Japanese, Simplified Chinese & Traditional Chinese)

Image Storage

Storage card 8G SD card(can be extended to 32G)
Video output Card reader, USB, WiFi
Storage mode Store signal frame image or dynamic video auto/manual
IR image format JPEG, 14-bit measurement data image included
Visual light image format Single frame, JPEG
Video storage High definition video stored in SD card(MPEG4/H.264 format),recording time up to 1 hour for per video
Voice annotation 40s voice record, stored with per image
Periodic image storage 10s to 24h

Laser Point

Grade/Type Class 2, 1mW/635nm Red


Power Yes
SD card slot Yes
Video output CVBS
Audio output Yes
Tripod 1/4” -20

Power System

Battery type Rechargeable li-ion battery
Battery operation time 2h
DC supply DC: 12V
Charging system In camera, AC adapter, car charger
Power saving Yes

Environment Parameters

Operation temperature range -15℃~+40℃
Storage temperature range -20℃~+50℃
Humidity ≤95%(Non-condense)
EMC EN61000-6-4&EN61000-6-2、FCC47CFR Part15 classA、EN61000-4-8, L5
Vibration 2G(IEC60068-2-6)
Shock 25G(IEC60068-2-29)
Encapsulation IP54(IEC60529)

Physical Data

Size(L×W×H) 308mm×142mm×166mm
Weight ≤2.5kg(with standard lens)
Gas Detection Sulfur Hexafluoride(SF6), Ammonia(NH3), Cyanoacrylate, chlorine dioxide, acetic acid, freon-12, Ethylene, methyl ethyl ketone(MEK), etc.


Standard Thermal imaging camera with standard 10°standard len, USB WiFi module, 2 Li-ion batteries, battery charger, adapter, car, charger, SD card, SD card, reader, software CD, warranty card, certificate, calibration book
Optional accessories Laptop, SLR camera
