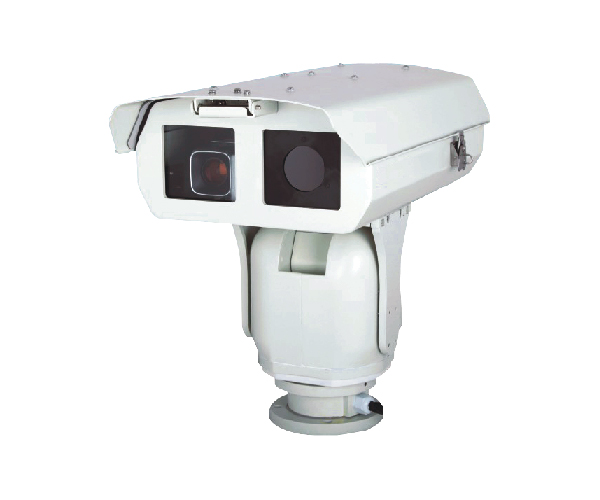

Monitoreo en línea del Sistema de Imagen Térmica TI3000

Número de producto: TI3000 384 x 288 píxeles

Categoria del producto: Sistemas de monitoreo de seguridad térmica - Monitoreo en línea del Sistema de Imagen Térmica

Descargar PDF Enviar esta página Envía tu mensaje

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

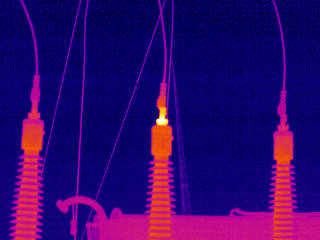

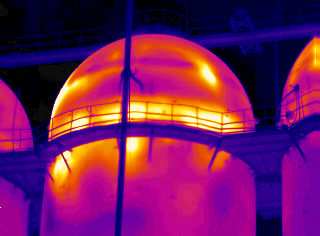

ULIRVISION TI3000|TI6000 can provide temperature monitoring and security monitoring for electrical equipments, machinery, flammable materials and important facilities on a 24/7 basis, 365 days a year. They can find accident potentials in the first time and give auto alarms to ensure the company’s safe production.

Principales Características

◆ Visual light & thermal imaging dual-channel real-time monitoring
◆ Monitoring in zero illuminance, smog and spray
◆ System front-end temperature measurement technology, quick and accurate temperature measurement
◆ 1 optical fiber to complete all controls and data transmission
◆ Auto cruise, auto alarm and report auto generating

Detector Data
Type	Uncooled FPA
Pixels	384×288
Pixel pitch	17μm
Spectral range	7.5~14μm
NETD	65mK 40mK
Lens Data
FOV/Minimum imaging distance	24°×18°/40cm
IFOV	1.3mrad
Focus	Auto/Manual
Lens(Optional)	15mm, 25mm, 35mm, 50mm, 75mm motorized or athermal lens
CCD Camera
Resolution	1920×1080
Min. Illumination	Color: 0.01 Lux@(F1.2, AGC ON) B/W: 0.001 Lux@(F1.2, AGC ON)
Zoom	12x(Digital)、36x(Optical)
Pan & Tilt
Horizontal rotation angle	0° ~360° continuous rotation
Presets	Supporting 255
Vertical angle	Max: -75 ~+40°
Measurement
Temperature range	Standard: -20 ℃~+350 ℃ Optional: -20℃~+1200℃
Accuracy	±2℃ or ±2% of reading
Mode	Software settings
Correction	Auto/Manual
Image Storage
Original image capture	Back-end manual capturing single frame, data image captured can be analysed & temperature-measured
Image storage	H.264 real-time continuous image recording Single image storage, BMP format
Power System
External power	AC: 220
Power consumption	≤75W (@25 ℃ normal operation )
Environmental Data
Operation temp range	-40 ℃~+60℃
Humidity	≤95% (non-condense)
Encapsulation	IP66
Software
Running environment	Windows platform
Customized content	Cruise route, cruise time, cruise times
Operation mode	Auto/Manual
Report mode	Supporting Word/PDF output
Monitoring type	Remote monitoring (temperature can be overlayed)
Query & Records	Recording alarms & abnormal thermal images, providing historical inquiry
Hardware configuration
CPU	≥P3
Memory	RAM: ≥512M
HD Space	≥20G
Monitor resolution	Monitor resolution: 1440×900, 256colors, installed with CD-ROM
Internet
Type	100Mbps
Internet Low Bandwidth	Supporting low-bandwidth operation mode, covering not more than 0.8M bandwidth when transmitting temperature data & image data simultaneously
Standard	IEEE802.3
Connector	RJ-45
General Protocols Supporting	IEC60870-5-104、IEC61850
False Alarm Prevention Identification System	System's auto elimination for the surrounding thermal sources interference
Service	Immediate feedback, 24-hr online service
