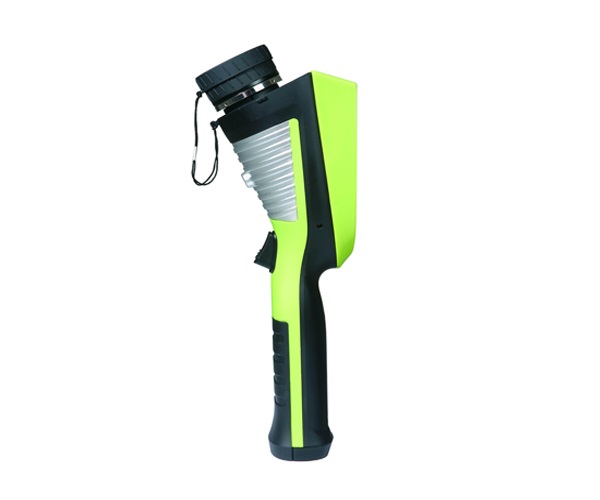

Cámara de imagen térmica de TI120

Número de producto: TI120 160 x 120 píxeles

Categoria del producto: Cámara de imagen térmica - Aplicación Médica

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

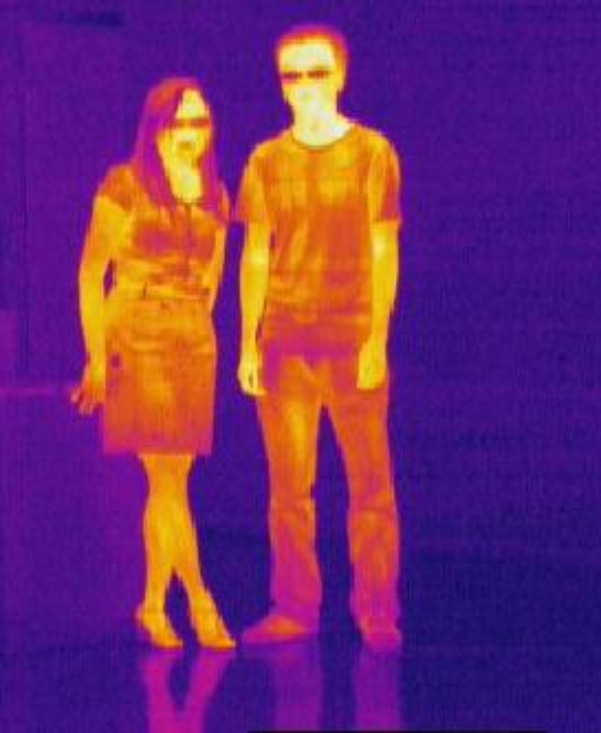

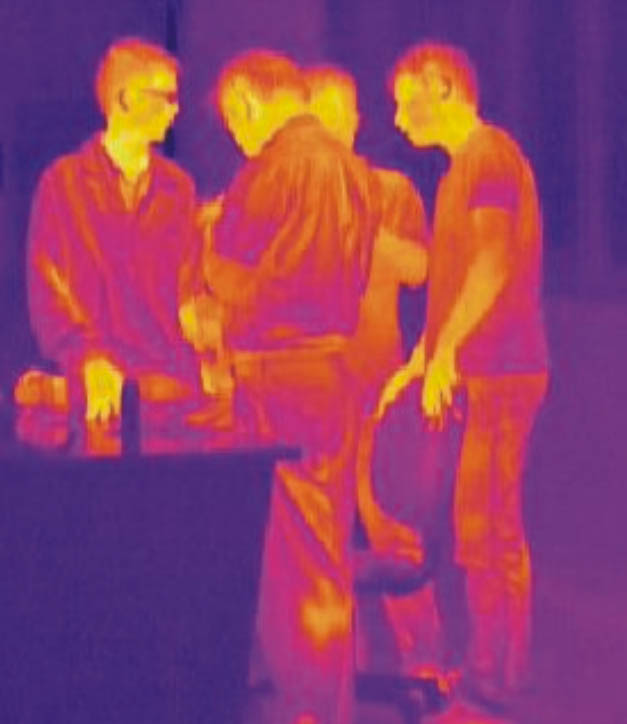

ULIRIVISION TI120 is a professional thermal imaging camera for medical application. It utilizes advanced thermal imaging technology and can take thermal imaging for flowing crowds with accurate, non contact, non invasive method to visualize skin surface temperature difference. It is the ideal instrument of the frontline of defense for government and corporation in public and private sectors to present possible fatal virus like SARS, bird flu, H1N1 flu, etc. It can also be applied for clinical diagnostics, veterinarian and medical research.

Principales Características

◆ Bright 3.5 color LCD
◆ 50Hz real-time imaging
◆ High accuracy, +/- 0.6℃
◆ Automatic search and alarm
◆ Non-contact monitoring

Detector Data

Type Uncooled FPA
IR resolution 160×120
Pixel pitch 25μm
Spectral range 7.5~14μm
NETD/Sensitivity 65mK 40mK


FOV/Minimum imaging distance 21°×16°/15cm
IFOV 2.3mrad
Focus Manual
Lens(Optional) 35°×27°/5cm、4°×3°/80cm

Image Performance

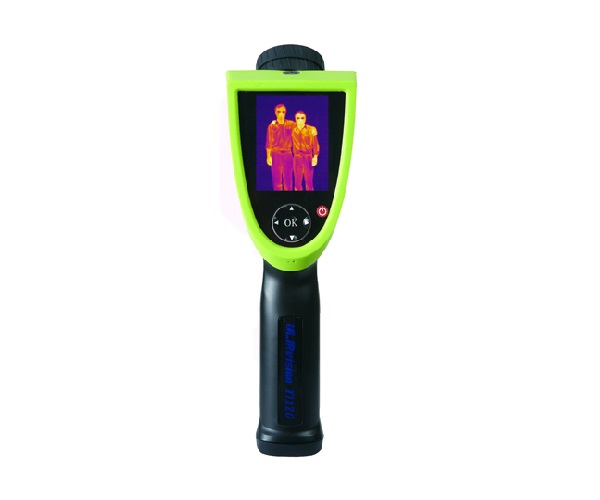

Display 3.5” color LCD, 320×240 pixels
Frequency 50Hz/60Hz
Digital zoom 2X
Contrast/brightness Auto/Manual


Temperature range -20℃~+50℃
Temperature accuracy ±0.6℃

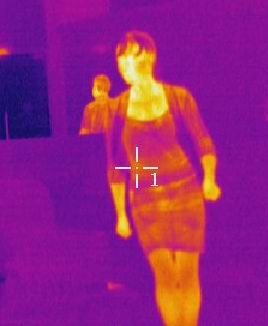

Spotmeter 1 adjustable spot
Line profile Vertical/Horizontal
Area 1 adjustable boxes with max./min./avg temperature value
Isotherms analysis Capture high/low temperature/interval
Alarm Voice, color
Measurement correction Auto/Manual
Emissivity correction Adjustable from 0.01 to 1.0 or selected from list of materials
Background temperature correction Auto
Atmospheric transmissivity correction Auto
Setting function Date/time, temperature unit ℃/℉/K, language
Video Can be recorded and saved

Image Storage

Storage type Built-in flash card, up tp 1500 images
Storage mode Store signal frame image auto/manual
Files format JPEG, 14-bit measurement data image included
Voice annotation 40s voice record, stored with per image via built-in microphone

Laser Point

Grade/Type Class 2, 1mW/635nm Red


Power Yes
Video output CVBS
Audio output Yes
USB USE2.0, radiometric images、measurement data and voice are transfered to PC

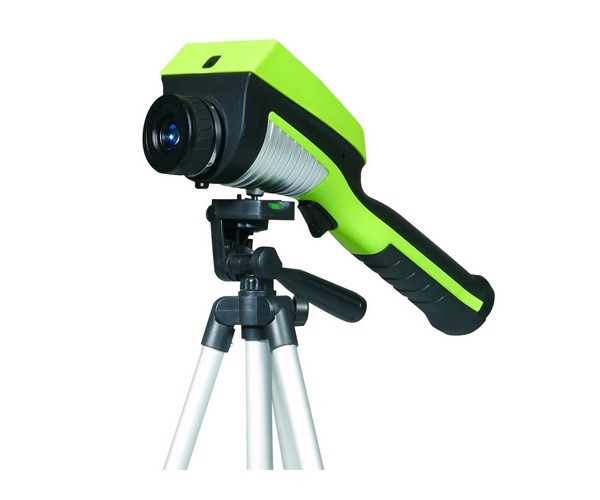

Tripod 1/4” -20

Power System

Battery type Rechargeable li-ion battery
Battery operation time 3hours
DC supply DC: 12V ±5%
Charging system In camera or intelligent charger
Power saving Yes

Environment Parameters

Operation temperature range -20℃~+50℃
Storage temperature range -40℃~+70℃
Humidity ≤95%(Non-condense)
Vibration 2G(IEC60068-2-6)
Shock 25G(IEC60068-2-29)
Encapsulation IP54(IEC60529)

Physical Data

Size(L×W×H) 330mm×95mm×86mm
Weight ≤0.65kg(with battery and standard lens)

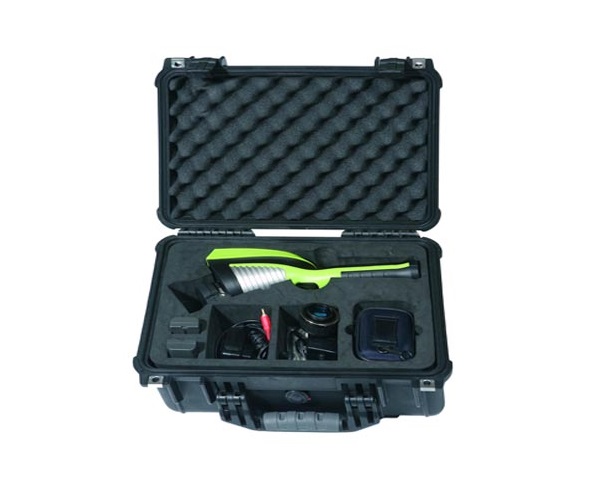

Standard Thermal imaging camera with standard IR lens, 2 Li-ion batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, certificate, calibration book
Optional accessories Laptop, SLR camera
